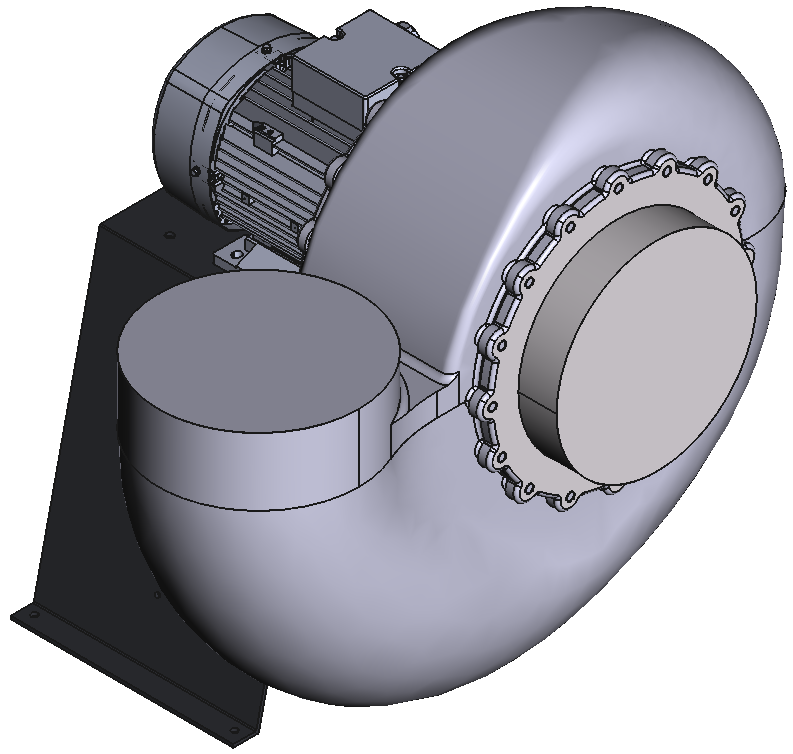

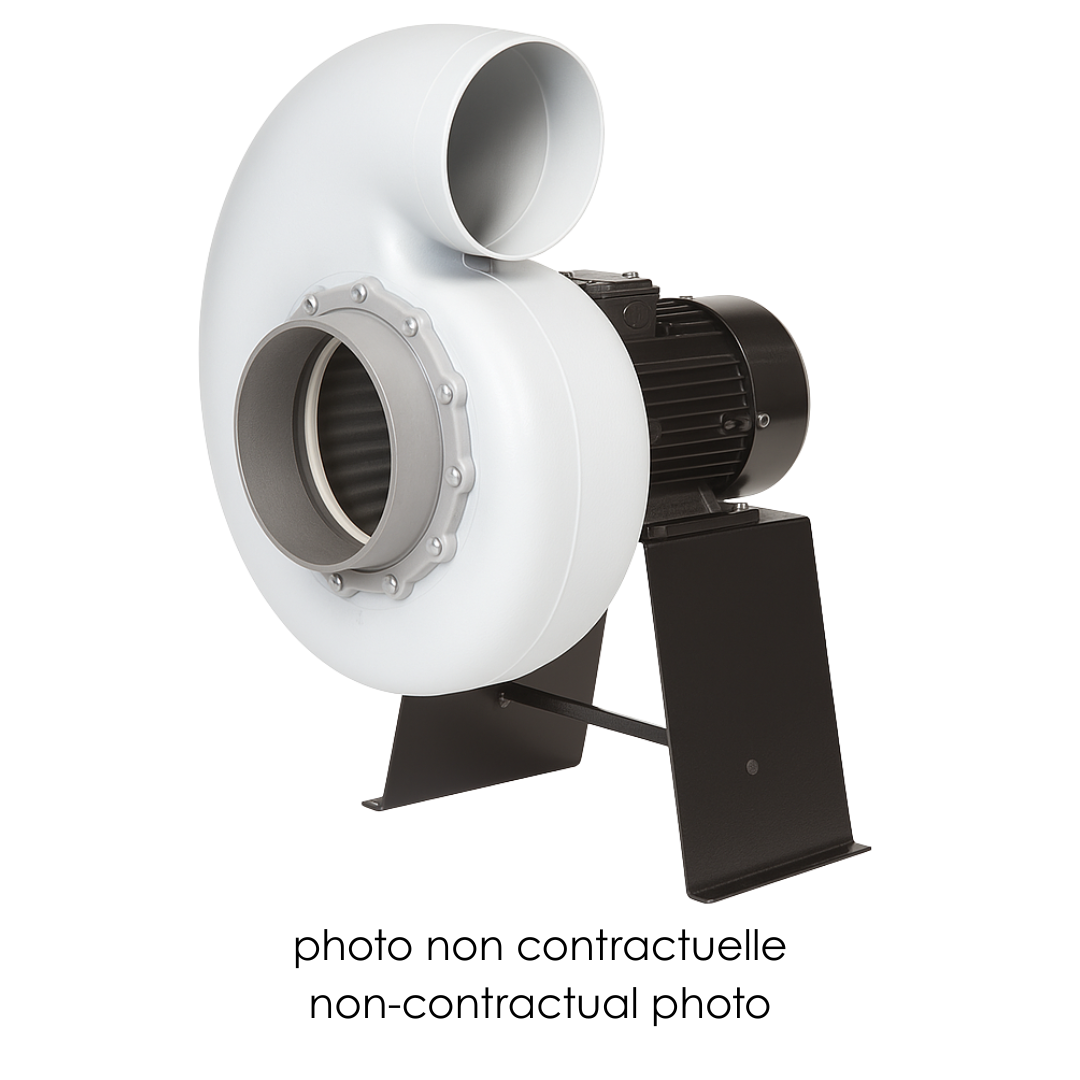

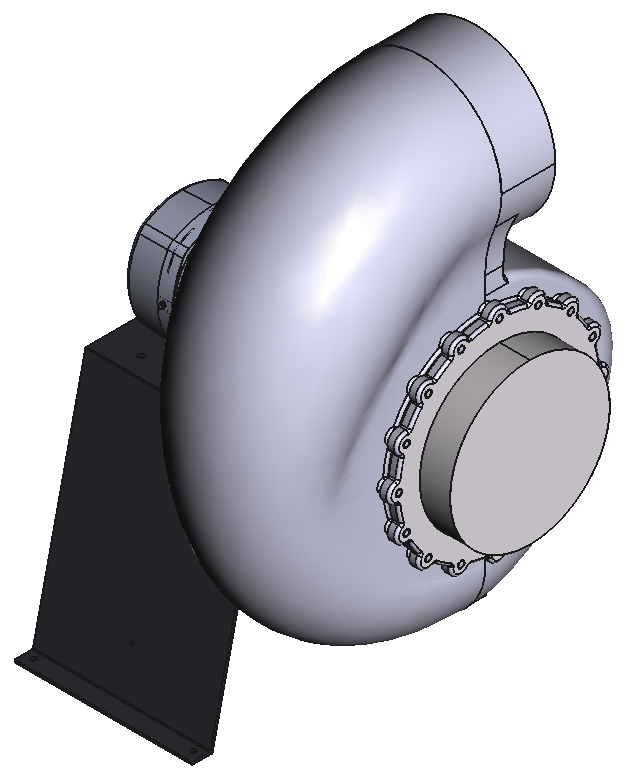

SEAT 35

Centrifugal fan made of anti-corrosion polypropylene

 The SEAT 35 from SEAT Ventilation is a polypropylene centrifugal fan used in laboratories and most industrial extractions.

Its polypropylene volute is suitable for the extraction of corrosive gases with a maximum air flow of 900m³/h and a diameter of 315mm in suction and discharge.

In direct drive, the turbine is attached directly to the motor shaft. It can be supplied with single-phase or three-phase motors with a frequency converter to meet the requirements of your installations.

The SEAT 35 is ideal for application in hazardous material storage buildings, chemical mixing and dispensing buildings, chemical containment rooms, paint storage rooms, spray booth exhaust, chemical reagent tanks, chemical cabinets, portable equipment, storage cabinets and most industrial extractions...

Hindered amine light stabilizer (HALS) polymers for increased UV resistance.

Easy to install, compact, it has good flow/pressure ratios.

Available in ATEX Zone 2 version

TECHNICAL CHARACTERISTICS

• Air flow: 1500-9000m³ /h
• Total pressure: 200-1500 Pa
• Aspiration: diameter 315 mm
• Material : polypropylene
• Training : direct
• Optional support: metal chair, high protection or roof kit
• Engine power supply: three-phase 220/380V (available in EC)
• Frequency : 50 Hz or 60 Hz with frequency converter
• Temperature : 60°C
