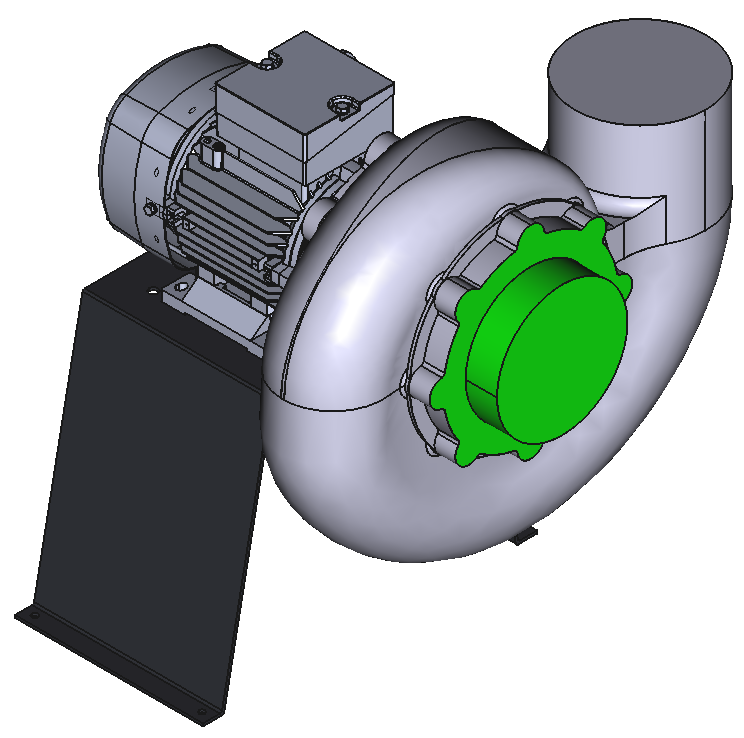

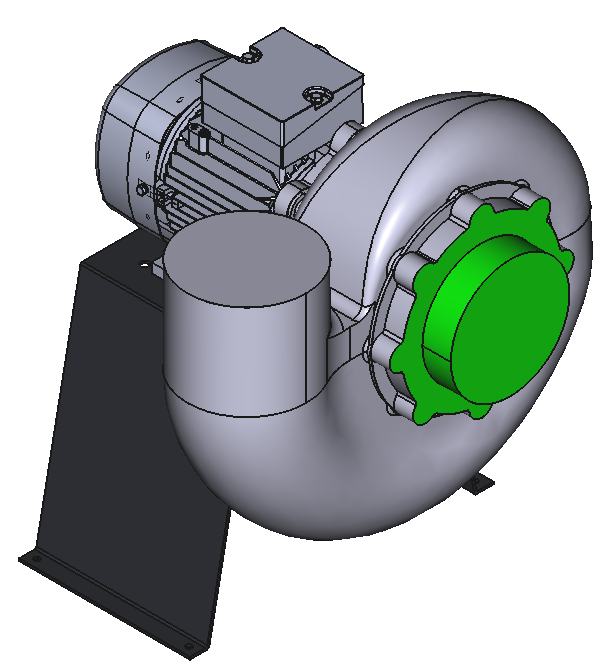

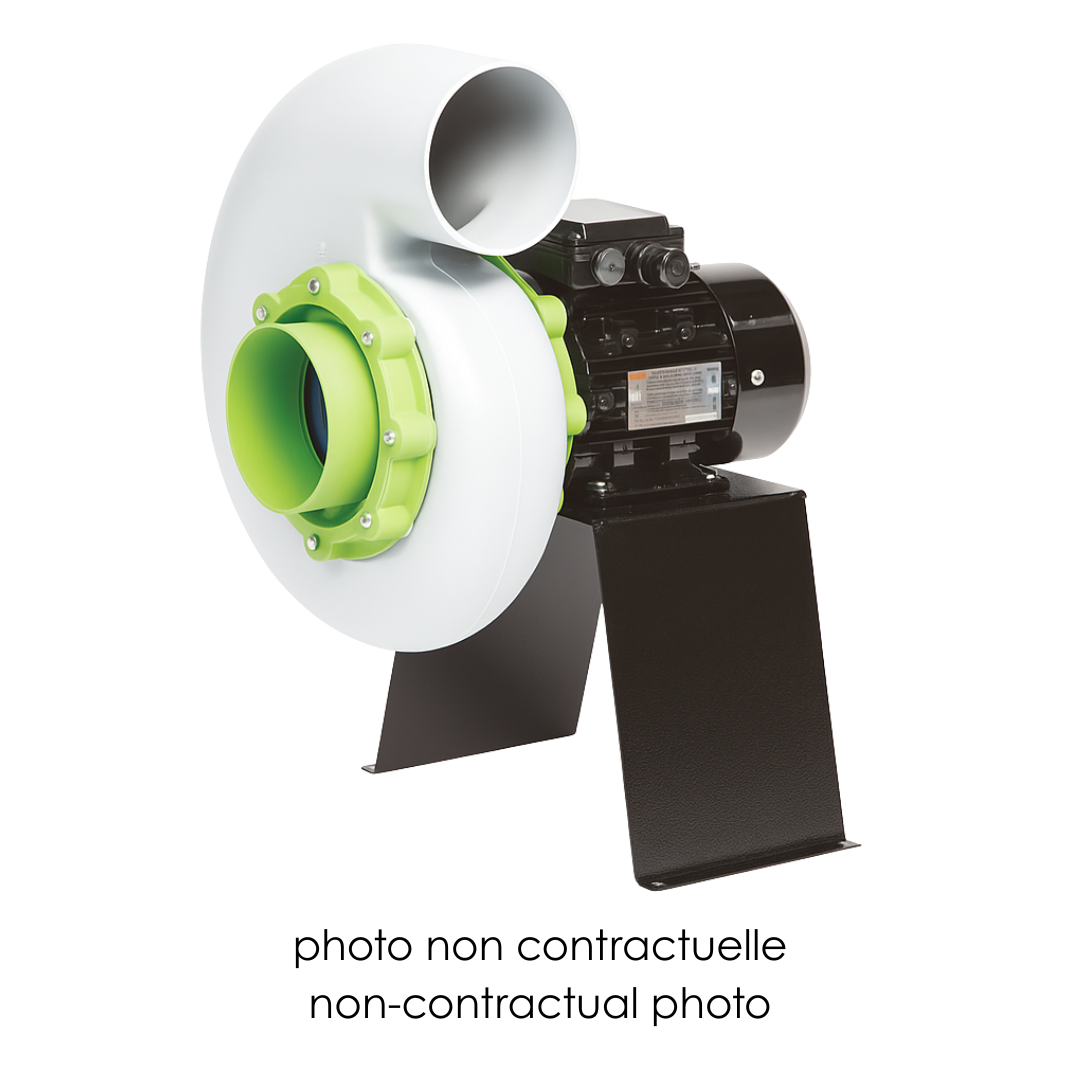

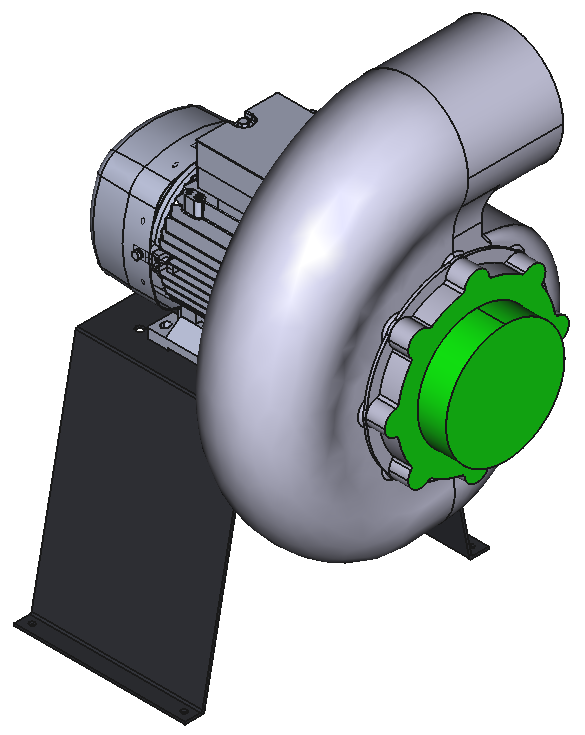

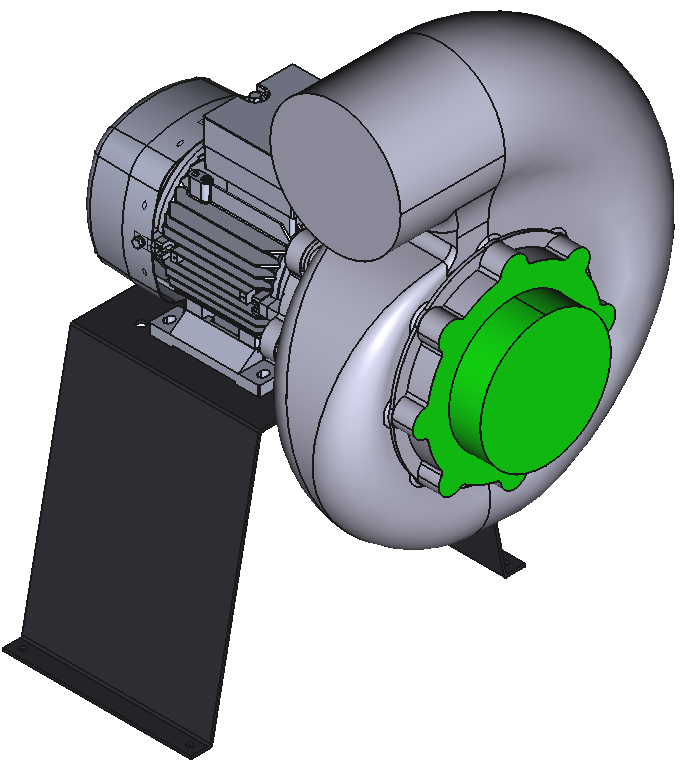

SEAT 15

Its polypropylene volute is suitable for the extraction of corrosive gases with a maximum air flow of 700m³/h and a diameter of 125mm in suction and discharge.

In direct drive, the turbine is attached directly to the motor shaft. It can be supplied with single-phase or three-phase motors and with a frequency converter to meet the requirements of your installations.

The SEAT 15 is ideal for applications in laboratories, chemical industries, petrochemical plants, pharmaceutical industries, water treatment sites, surface treatment, the food industry, swimming pools, hospitals, universities, and most industrial extractions...

Hindered amine photostabilizer (HALS) polymers for increased UV resistance.

Easy to install, compact, it has good flow/pressure ratios.

Available in ATEX Zone 2 version

TECHNICAL CHARACTERISTICS

• Air flow: 50-700m³/h (300-410 CFM)
• Total pressure: 20-600Pa
• Aspiration: diameter 125mm
• Material : polypropylene
• Training : direct
• Optional support: metal chair, high protection or roof kit
• Asynchronous motor: single-phase 220V or three-phase 220/380V (available in EC)
• Frequency : 50 Hz or 60 Hz with frequency converter
• Temperature : 60°C

► Find the right product for your project even more easily, thanks to our online selection software:

ZEPHYR
